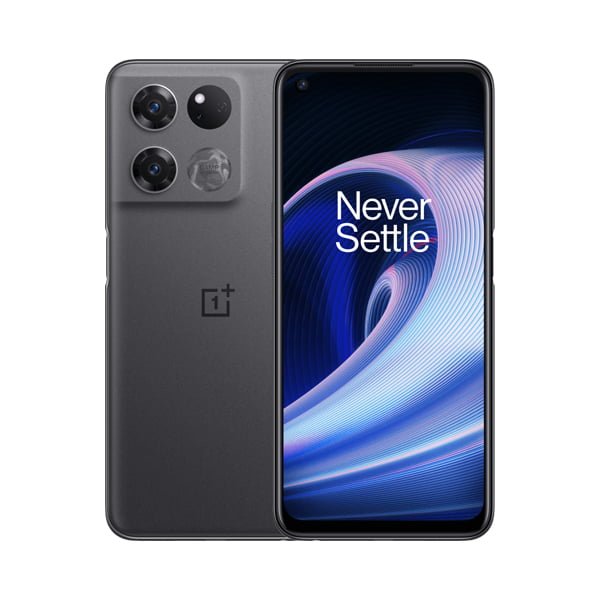

OnePlus Ace Racing

Brand: OnePlus
Category: Mobile Phones
Add to Compare

Display 6.59-inch (1080x2412)
Processor Dimensity 8100 Max
Rear Camera 64MP + 8MP + 2MP
RAM 8/12GB
Storage 128GB/256GB
Battery Capacity 5000mAh
OS Android 12

OnePlus Ace Racing Summary

OnePlus Ace Racing Edition smartphone was announced in May 2022. The phone has a 120 Hz refresh rate and a 6.59-inch touchscreen display offering a resolution of 1080×2412 pixels (FHD+). The phone is powered by an octa-core MediaTek Dimensity 8100 5G processor. It is available with 8GB and 12GB of RAM. The phone runs Android 12 and is powered by a 5000mAh battery. The phone supports proprietary fast charging.

Regarding the cameras, the phone on the rear packs a triple camera setup featuring a 64-megapixel (f/1.7) primary camera; an 8-megapixel (f/2.2) camera, and a 2-megapixel (f/2.4) camera. The rear camera setup has autofocus. It features a single front camera for selfies, equipped with a 16-megapixel sensor and an f/2.05 aperture.

OnePlus Ace Racing Edition runs ColorOS 12.1 is based on Android 12 and packs 128GB and 256GB of built-in storage. The phone measures 164.30 x 75.80 x 8.70mm (height x width x thickness) and weighs 205.00 grams. It was launched in Black and Blue colors.

Connectivity options on the phone include Wi-Fi 802.11 a/b/g/n/ac/ax, GPS, Bluetooth v5.30, NFC, and USB Type-C. The sensors include an accelerometer, ambient light sensor, compass/ magnetometer, gyroscope, proximity sensor, and fingerprint sensor.

Specifications

Network

Technology	GSM / CDMA / HSPA / CDMA2000 / LTE / 5G
2G Bands	• GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 • CDMA 800
3G Bands	• HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 • CDMA2000 1x
4G Bands	1, 3, 4, 5, 7, 8, 18, 19, 28, 34, 38, 39, 40, 41
5G Bands	1, 3, 5, 8, 28, 41, 77, 78 SA/NSA
Speed	HSPA, LTE, 5G

View More View Less

Launch

Announced	Available.2022, May 17
Status	Available. Released 2022, May 31 Released 2022, February 22

Body

Dimensions	164.3 x 75.8 x 8.7 mm (6.47 x 2.98 x 0.34 in)
Weight	205 g (7.23 oz)
SIM	Dual SIM (Nano-SIM, dual stand-by)

Display

Display Type	IPS LCD, 120Hz, 480 nits (typ), 600 (HBM)
Size	6.59 inches, 104.5 cm2 (~83.9% screen-to-body ratio)
Resolution	1080 x 2412 pixels, 20:9 ratio (~401 ppi density)

Memory

Expandable	No
Internal Internal Storage is a data storage space (flash memory) mostly used in smartphones, tablets and other electronic devices where operating system, apps, music, photos, videos, files and other user data Is stored.	128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM
Extra	UFS 3.1

Software

OS OS => Every computer system run on a base software called Operating System (OS). Operating System controls all basic operations of the computer (such as smartphone, PDAs, tablet computers and other handheld devices). The Operating System allows the user to install and run third party applications (apps), apps are used to add new functionality to the device.	Android 12, ColorOS 12.1
Chipset Chipset is a group of integrated circuits designed to perform one or a more dedicated functions, often with real time computing constraints, Popular smartphones are equipped with more advanced embedded chipsets that can do many different tasks depending on their programming.	Mediatek Dimensity 8100 Max (5 nm)
CPU CPU (Central Processing Unit) mostly known as processors, CPU processes instructions in order to carry out certain functions that make your device operate properly. Processors are often described as the brain of computers, smartphones and tablets, Smartphones and tablets rely on processors to carry out their every task, Processors are an incredibly important factor in selecting any type of computing device, including your smartphone.	Octa-core (4x2.85 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55)
GPU GPU (Graphics Processing Unit) is a single-chip processor designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display, This includes things such as lighting effects, object transformations, and 3D motion.	Mali-G610 MC6

Camera

Rear Triple	• 64 MP, f/1.7, 25mm (wide), PDAF • 8 MP, f/2.2, 15mm, 119˚ (ultrawide), 1/4.0", 1.12µm • 2 MP, f/2.4, (macro)
Features	• Main: LED flash, HDR, panorama • Front: HDR
Rear Video	4K@30fps, 1080p@30/60/120fps, gyro-EIS
Front camera	16 MP, f/2.1, 26mm (wide), 1/3.09", 1.0µm
Front Video	1080p@30fps, gyro-EIS

Features

Sensors Sensors are electronic components that detects and responds to some type of input from the physical environment. The specific input could be light, heat, motion, moisture, pressure and location, The output is generally a signal that is converted to use in computing systems, a location sensor, such as a GPS receiver is able to detect current location of your electronic device.	Fingerprint (side-mounted), accelerometer, gyro, proximity, compass
Sound	3.5mm jack, Speaker Phone with stereo speakers
Messaging	SMS(threaded view), MMS, Email, Push Mail, IM
Browser Web Browser => a web browser is a software application used to locate, retrieve and display content on the World Wide Web, including Web pages, images, video and other files, The primary function of a web browser is to render HTML, the code used to design or markup webpages.	HTML5
Games	Built-in + Downloadable
Touch Screen	Yes
Extra	• Document viewer • Photo/video editor

Connectivity

WLAN	Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct
Bluetooth Bluetooth is a wireless communications technology for exchanging data between mobile phones, headsets, computers and other network devices over short distances without wires, Bluetooth technology was primarily designed to support simple wireless networking of personal consumer devices.	5.3, A2DP, LE, aptX HD
GPS GPS The Global Positioning System is a satellite-based radio navigation system, GPS permits users to determine their position, velocity and the time 24 hours a day, in all weather, anywhere in the world, In order to locate your position, your device or GPS receiver must have a clear view of the sky.	GPS, GLONASS, GALILEO, BDS, QZSS
NFC NFC (Near field communication) is a set of standards for smartphones and similar devices to establish peer-to-peer radio communications with each other by touching them together or bringing them into proximity, usually no more than a few inches.	Yes
Radio	No
USB	USB Type-C 2.0

Battery

Battery Type Battery Type => Cell phones run on various kinds of batteries depending on the manufacturer, phone size or shape and features. There are basically four types of cell phone batteries => Lithium Polymer, Lithium Ion, Nickel Metal Hydride and Nickel Cadmium.	Li-Poly (Lithium Polymer)
Capacity Battery Capacity is a measure (typically in Amp-hr) of the charge stored by the battery, and is determined by the mass of active material contained in the battery. The battery capacity represents the maximum amount of energy that can be extracted from the battery under certain conditions.	5000 mAh, non-removable
Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.	67W wired, 80% in 29 min (advertised)
